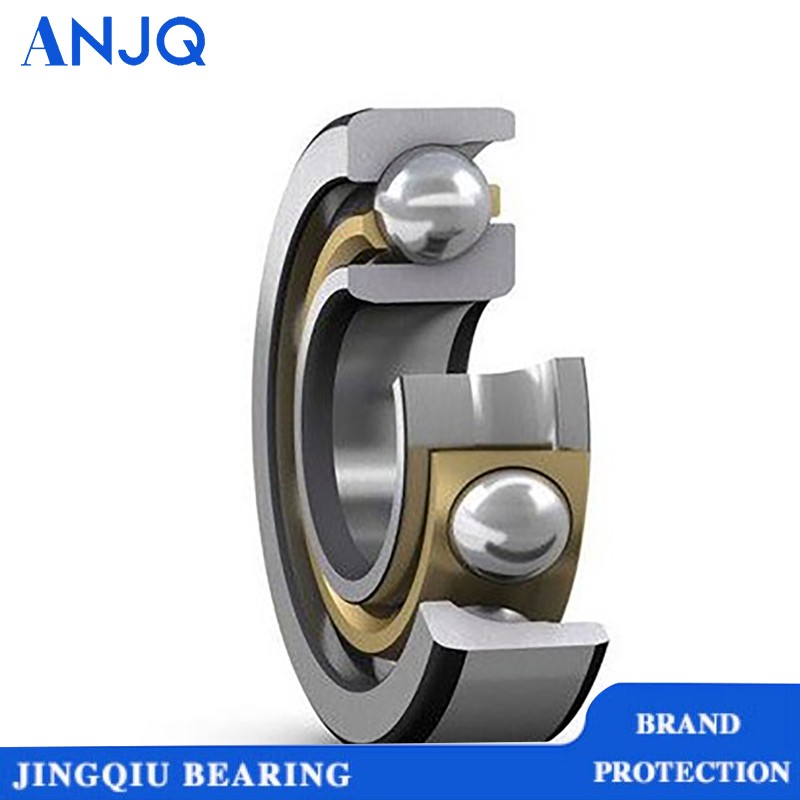

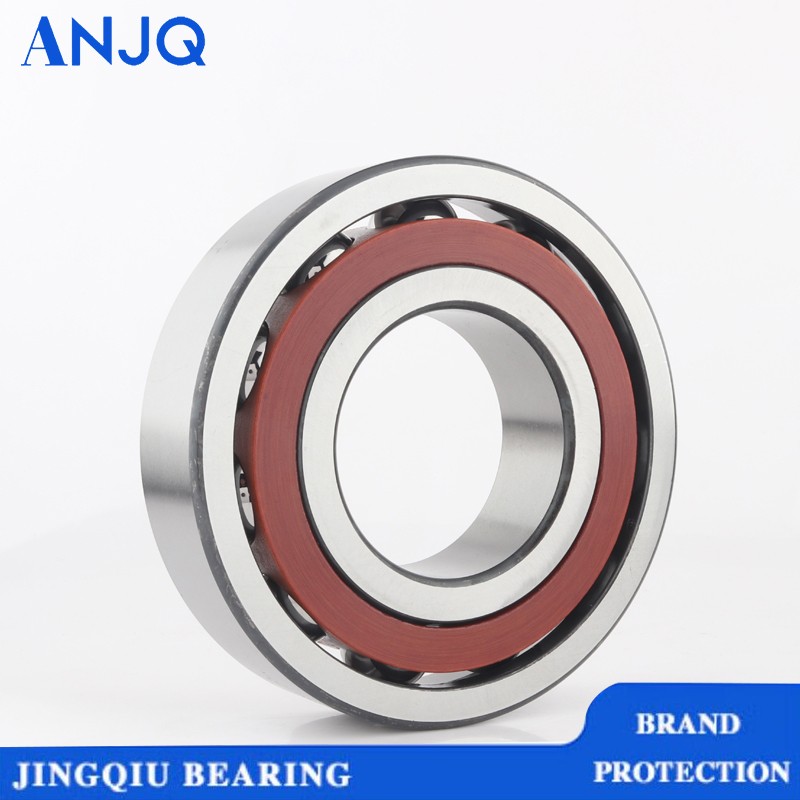

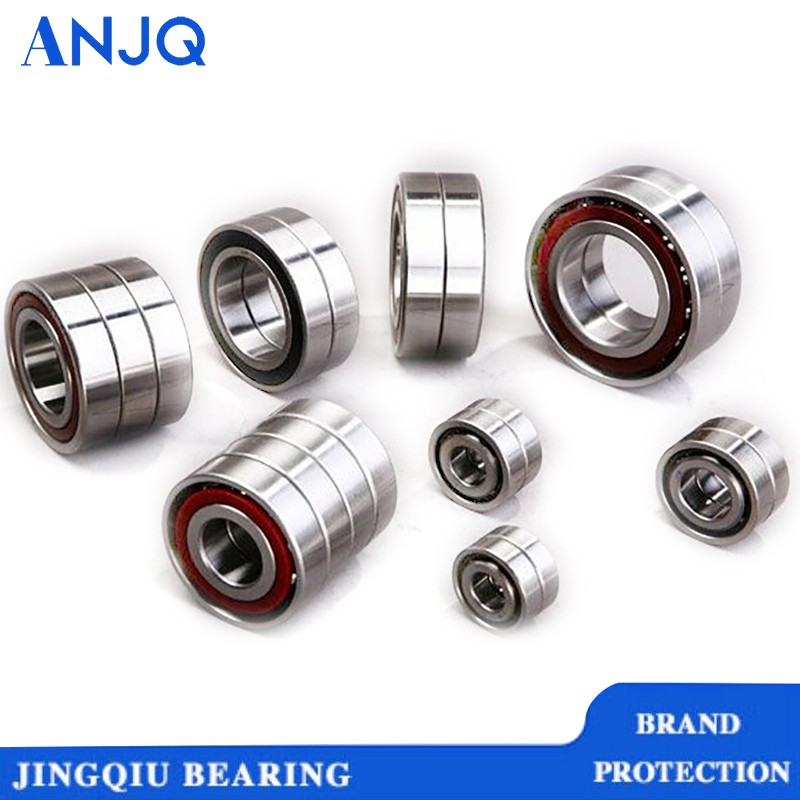

7216AC Angle contact ball bearing

Material:52100 Bearing Quality Steel(GCr15SiMn)

Hardness:HRC 58-62

Clearance:C0 C3 C4

Precision rate:P0 P6 P5

Vibration:ZV1. ZV2 .ZV3.

Cage:Steel/Brass cage/Bakelite

Brand:ANJQ / OEM

Packing method:Cartons, wooden cases, or customer requirements

Service:OEM service provided

Product Description:
The connection between the ball ball and the contact point of the inner and outer ring of the contact ball bearing is in the radial angle. The contact angles are generally divided into 15 °, 30 °, and 40 °. They are represented by the letters C, A, and B, respectively. produces such bearings with a contact angle of 25 ° and is represented by A711.

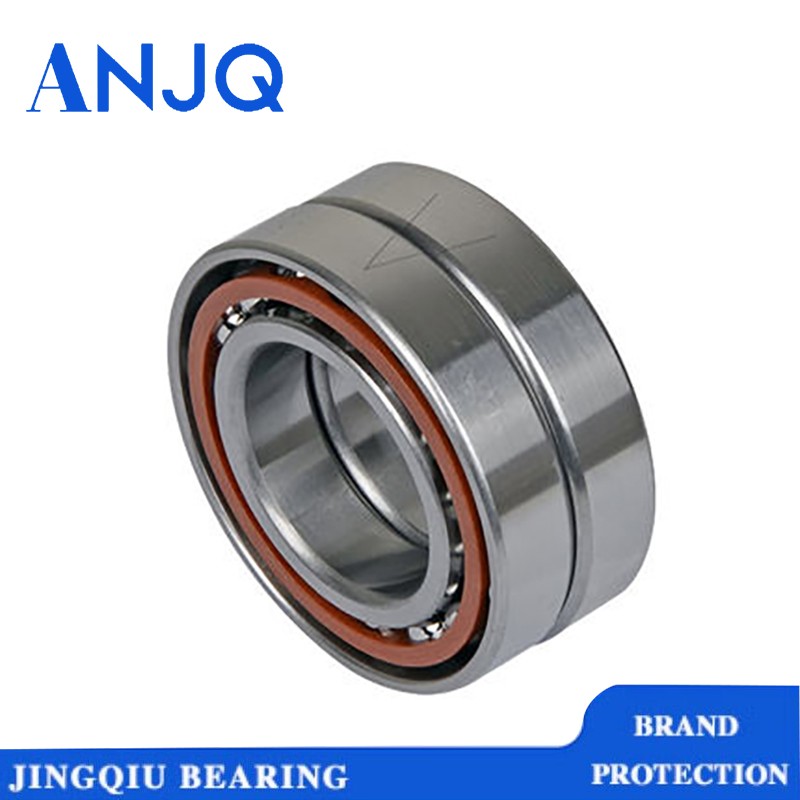

Single row angular contact ball bearing can bear radial load and axial load in single direction. DB combination, DF combination into four point contact, double row angular contact ball bearing, can withstand radial and bidirectional axial load. Angular contact ball bearings are suitable for high speed and high precision rotation.

This kind of bearing is mainly used in machine tool spindle, high frequency motor, oil pump, air compressor, printing press, etc. Four point angular contact ball bearings are usually used in the oil roller box of rolling mill to bear axial load.

ANJQ. bearing the main types are:

7000AC----7028ACM----7060ACM

7200AC----7228ACM-----7264ACM

7303AC----7320ACM-----7348ACM

QJ1010M--QJ1028M------QJ1080M

QJ210M---QJ228M--------QJ260M

QJ305M---QJ320M--------QJ348M

718 719 QJF C B DB DF Series

5200(3200)--5210(3210)--5220(3220)

5300(3300)--5310(3310)--5320(3320)

We produce a complete range of models, most of which are in stock
