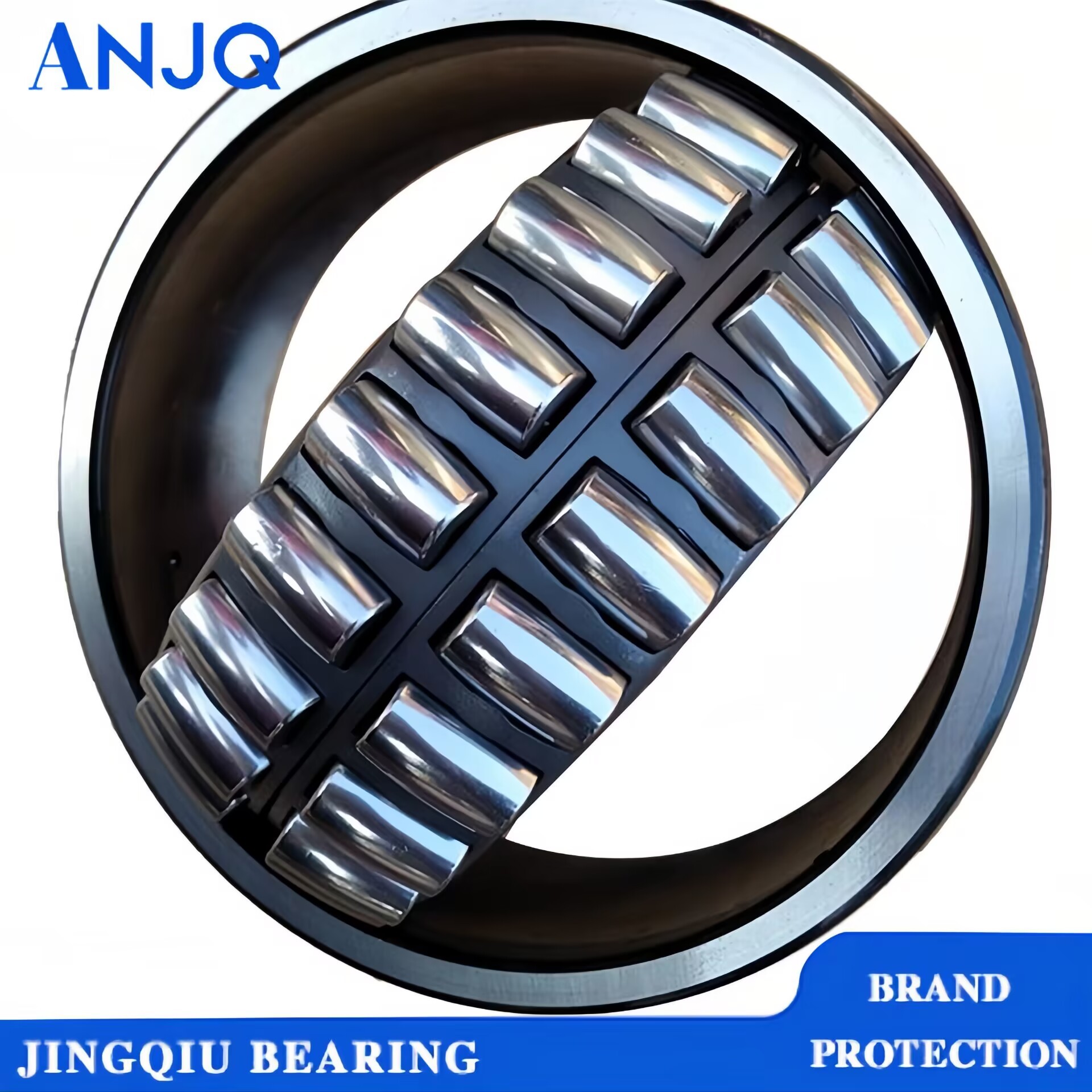

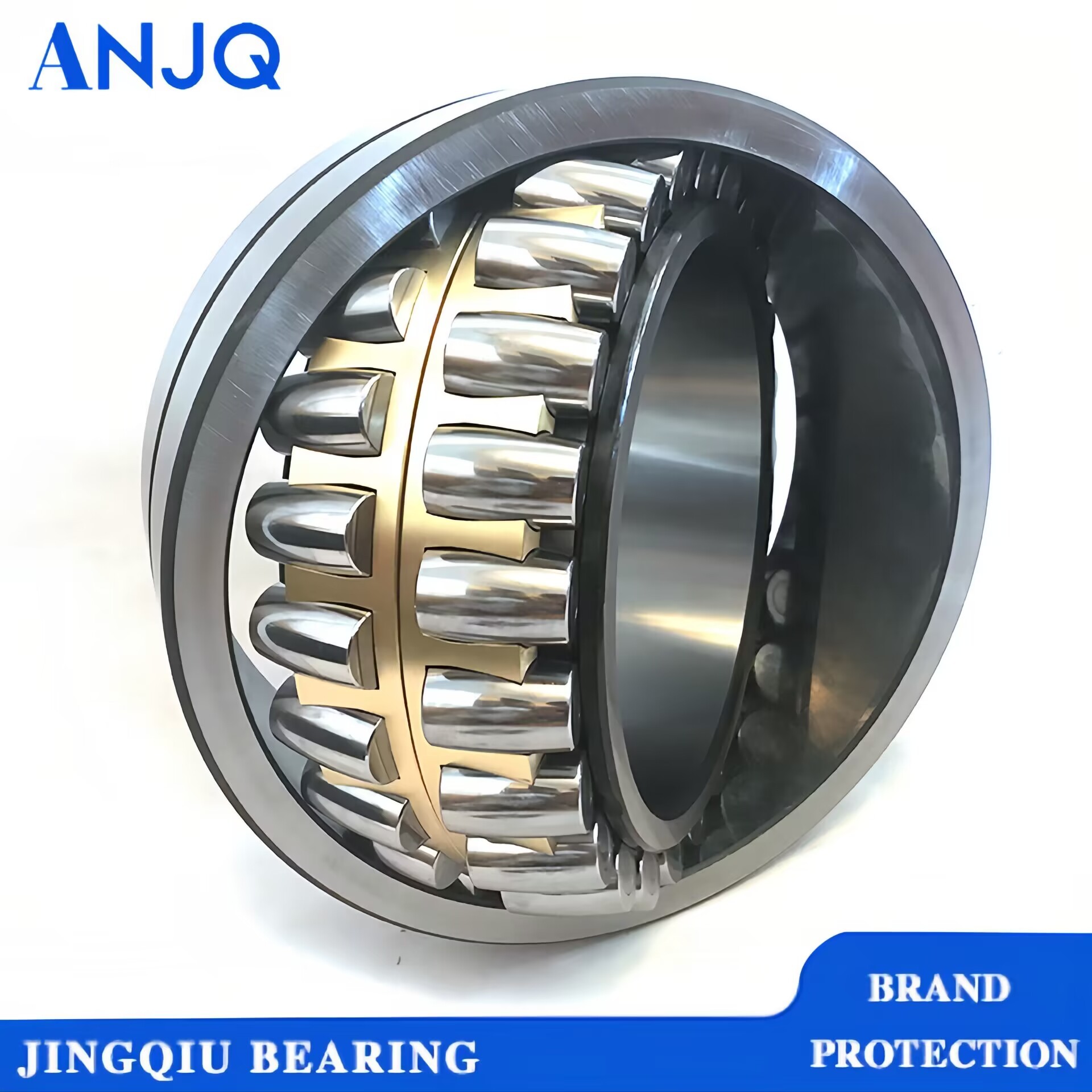

Spherical Roller Bearings

Material：52100 Bearing Quality Steel（GCr15SiMn）
Hardness：HRC 58-62
Clearance：C0 C3 C4
Precision rate：P0 P6 P5
Vibration：ZV1 ZV2 ZV3
Cage：Steel/Brass cage CA CC MB MA
Brand：ANJQ/ OEM
Packing method：Cartons, wooden cases, or customer requirements
Service：OEM service provided

Spherical roller bearings consist of an inner ring with two raceways inclined at an angle to the bearing axis, an outer ring with a common spherical raceway, spherical rollers, cages and, in certain designs, also internal guide rings or center rings.The bearings can also be sealed.A spherical roller bearing is a rolling-element bearing that permits rotation with low friction, and permits angular misalignment.
Typically these bearings support a rotating shaft in the bore of the inner ring that may be misaligned in respect to the outer ring.The rolling elements of spherical roller bearings are mainly cylindrical in shape, but have a (barrel like) profile that makes them appear like cylinders that have been slightly over-inflated.

ANJQ bearing the main types are:

22205------22280

22305------22384

23020------23096

230/500----230/1180

23120------23196

231/500----231/750

23218------23296

232/500----232/750

23928------23996

239/500----239/1180

24015------24096

240/500----240/1180

24120------24196

241/500---241/750

23320------23340

4G3734K

53856

53860

3738 MB/W33

3844 MB/W33

3768 MB/W33

231/200 MB/W33

231/339MB/W33

Vibrating screen is special    CA CC MB MA K K30 W33 series

Bearing in cement plant, bearing in mining machinery, bearing in ball mill Crusher bearing vibrating screen bearing mining machine bearing

Paper bearing machine tool bearing steel mill bearing

Rolling mill bearing petroleum machinery bearing split bearing

Processing, customized special, extra large and non-standard bearings
