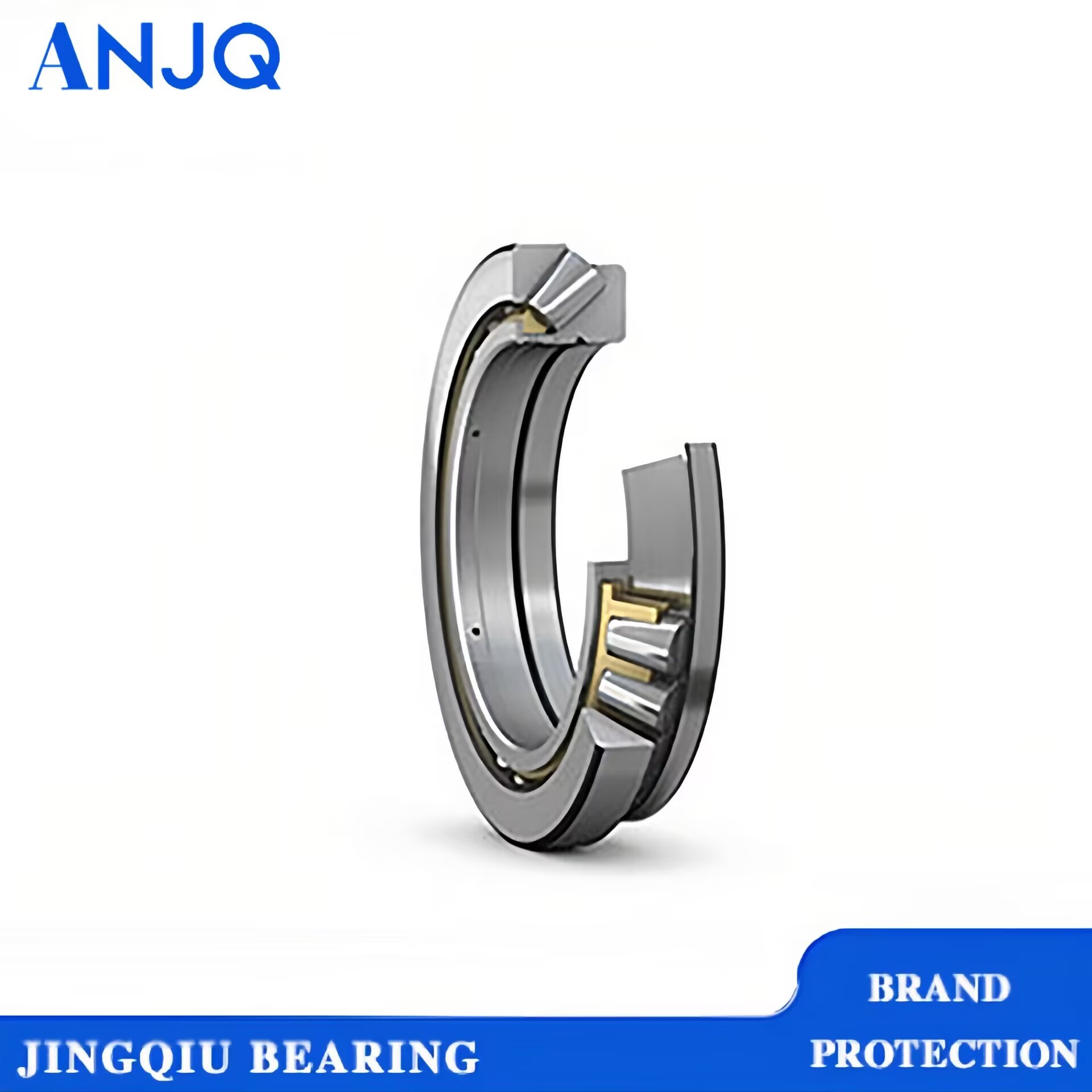

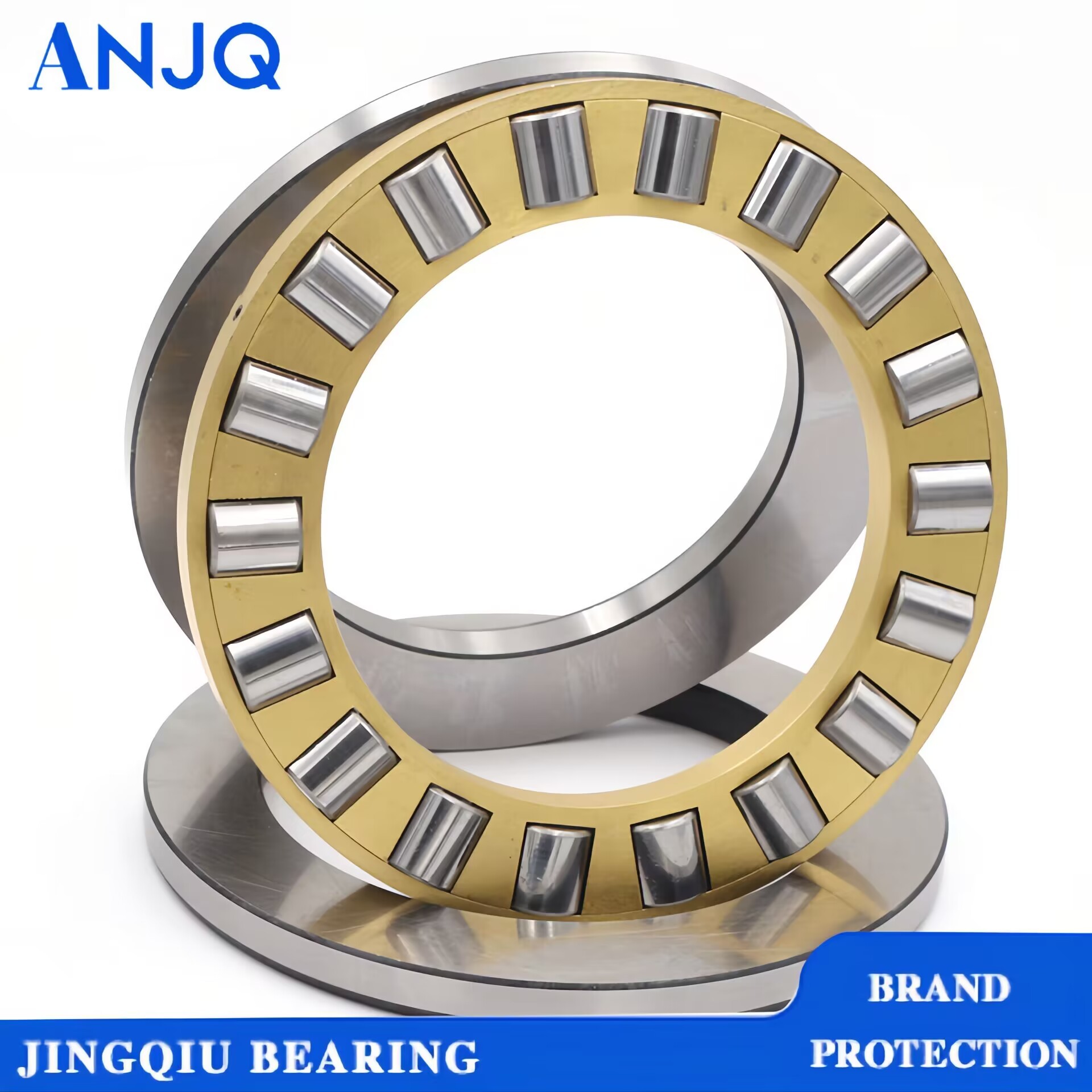

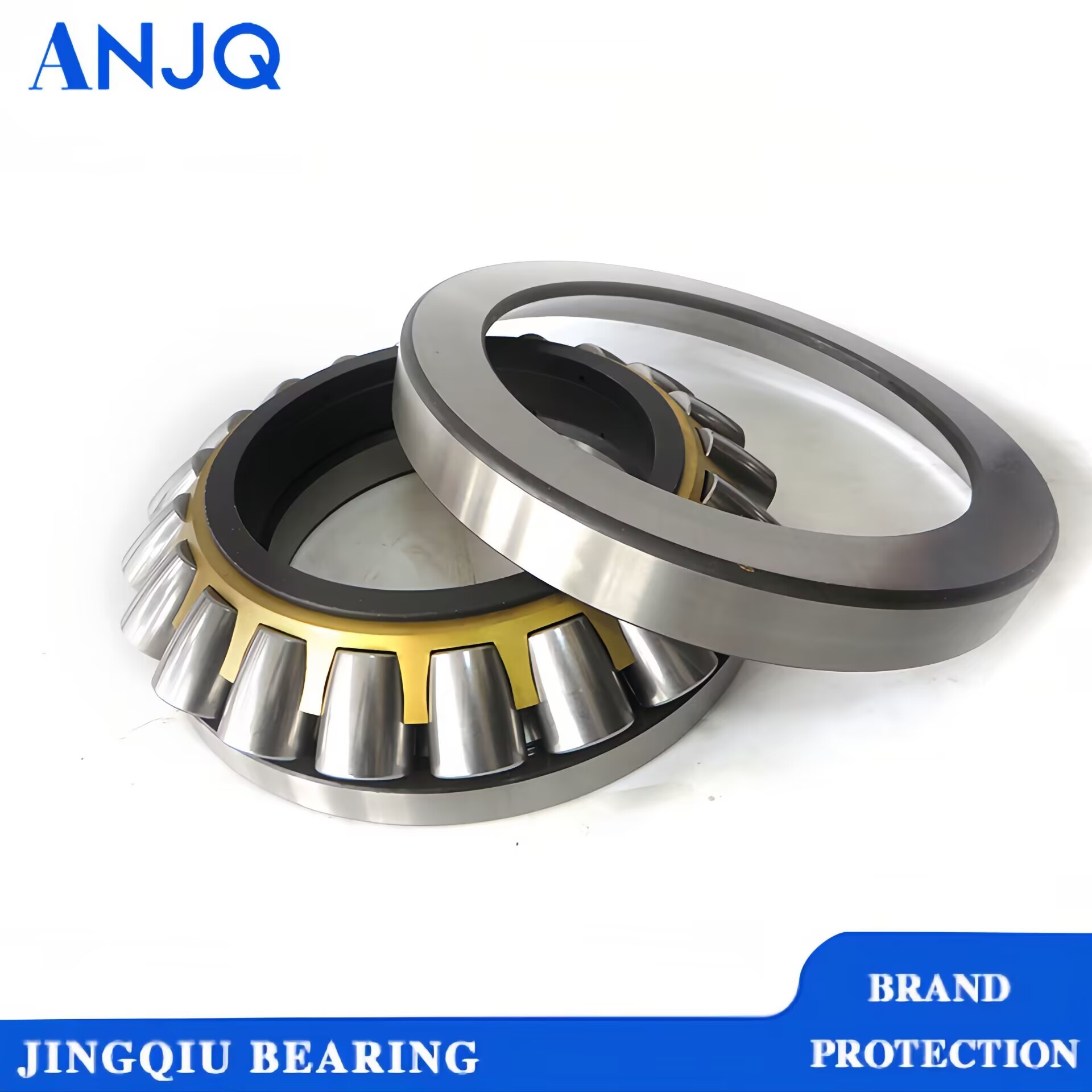

Thrust roller bearing

Material:52100 Bearing Quality Steel(GCr15SiMn)

Hardness:HRC 58-62

Clearance:C0 C3 C4

Precision rate:P0 P6 P5

Vibration:ZV1 ZV2 ZV3

Cage:Steel/Brass cage

Brand:ANJQ / OEM

Packing method:Cartons, wooden cases, or customer requirements

Service:OEM service provided

Product Description:

Thrust roller bearings are used to support axial and radial combined loads, but the radial load must not exceed 55% of the axial load. Compared with other thrust roller bearings, this type of bearing has a low friction factor, a high rotational speed, and has a self-aligning performance.
Thrust cylindrical roller bearings and thrust tapered roller bearings are suitable for low speed applications. Thrust tapered roller bearings have slightly higher rotational speed than thrust cylindrical roller bearings. Thrust cylindrical roller bearings are separate bearings that can only withstand one-way axial loads and slight impacts, and can limit the axial displacement of the shaft (or casing) in one direction, so it can be used as one-way axial positioning. However, its carrying capacity is much larger than that of thrust ball bearings. When the roller rolls, the roller speed is inevitably slipped on the ferrule raceway due to the different linear speeds at both ends of the roller. Therefore, the limit rotation speed of such a bearing is lower than that of the thrust ball bearing, and is usually only suitable for low-speed operation.

ANJQ bearing the main types are:

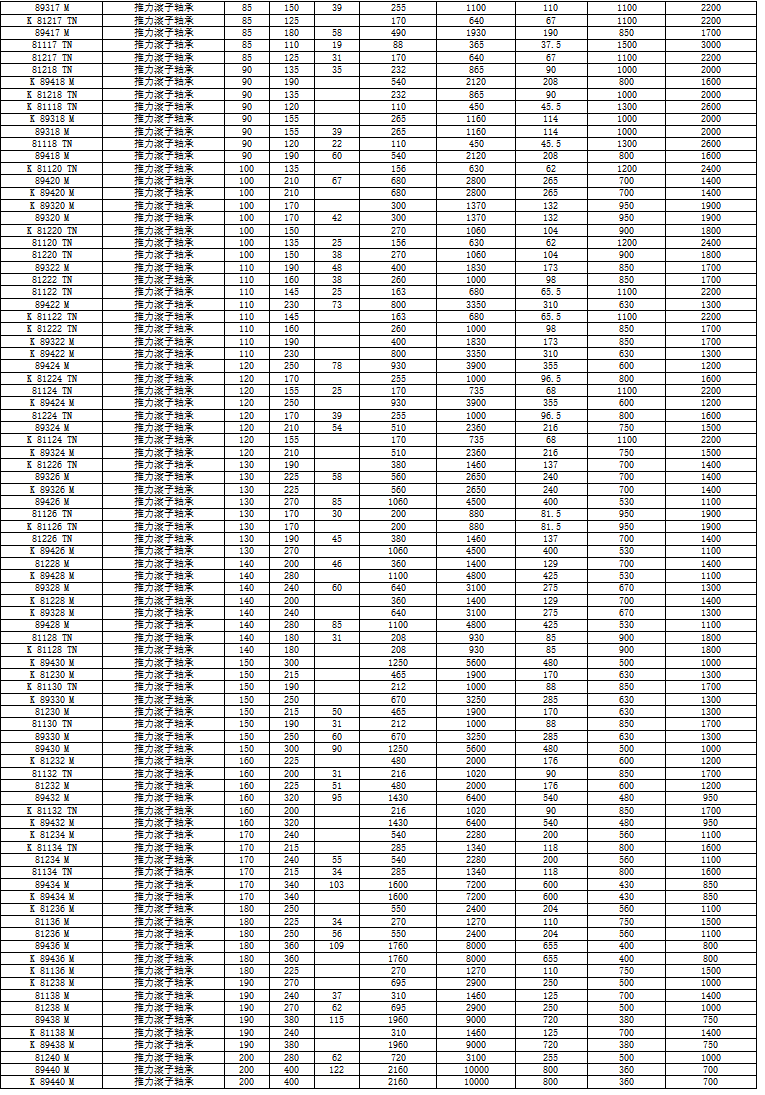

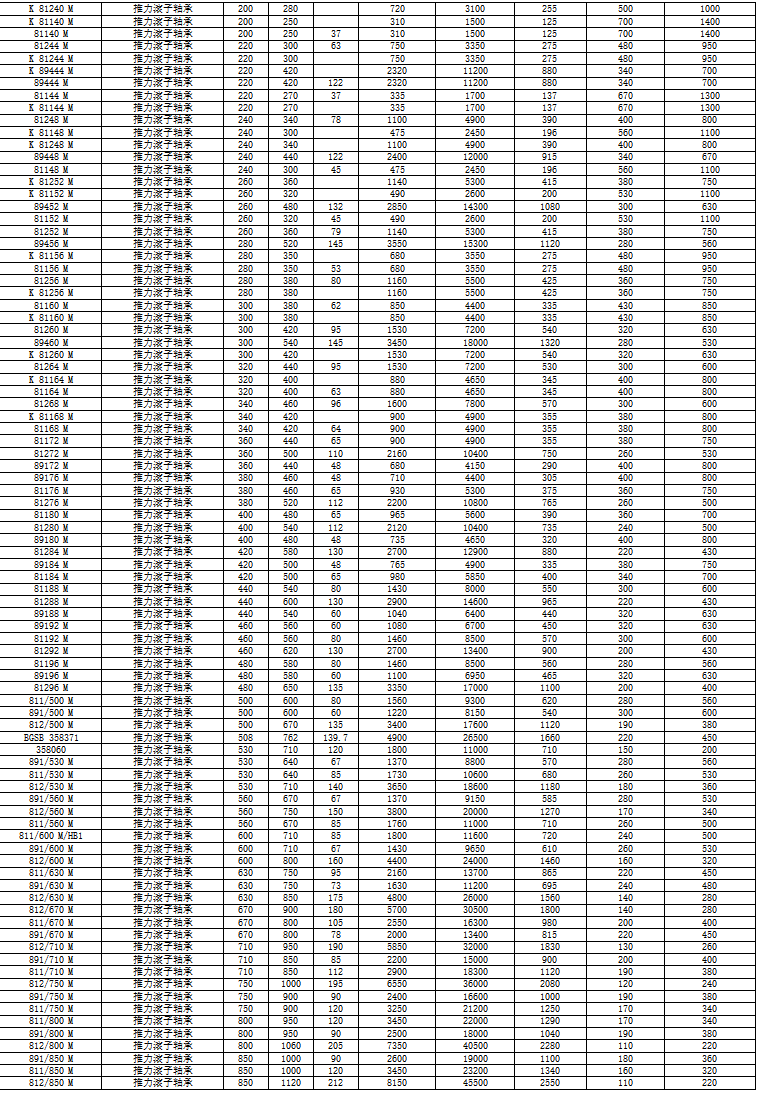

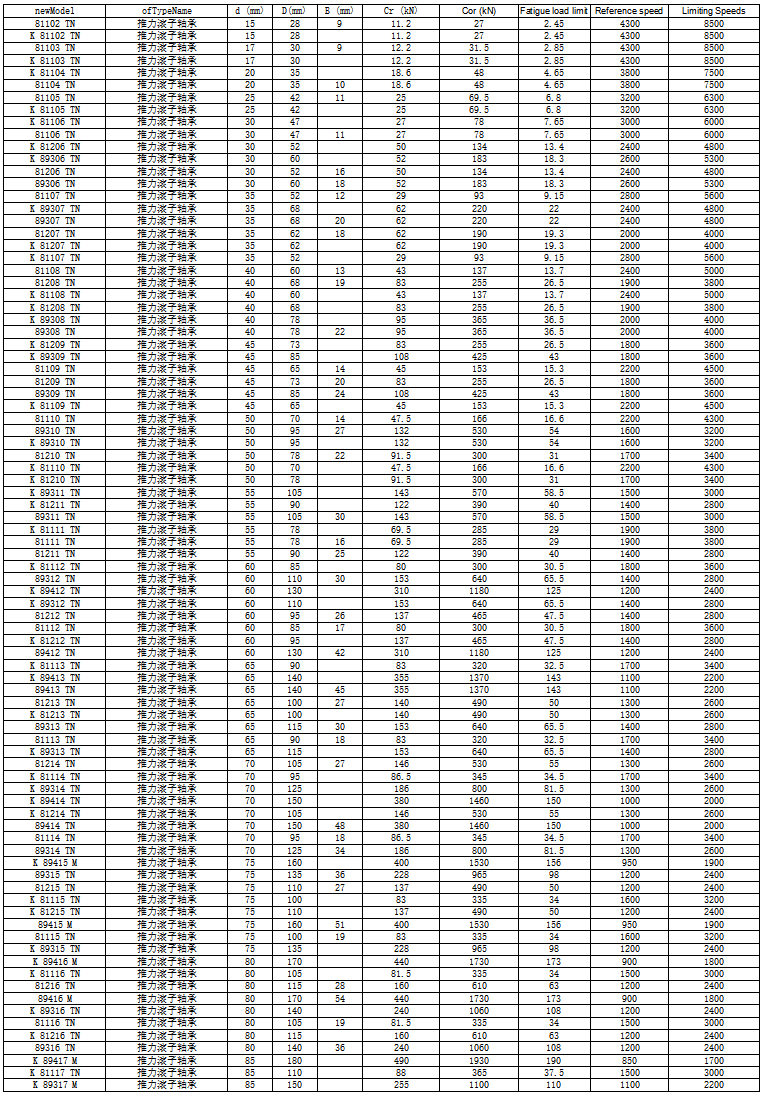

9069 9019   89   99 series   E EM ECM

We produce a complete range of models, most of which are in stock
