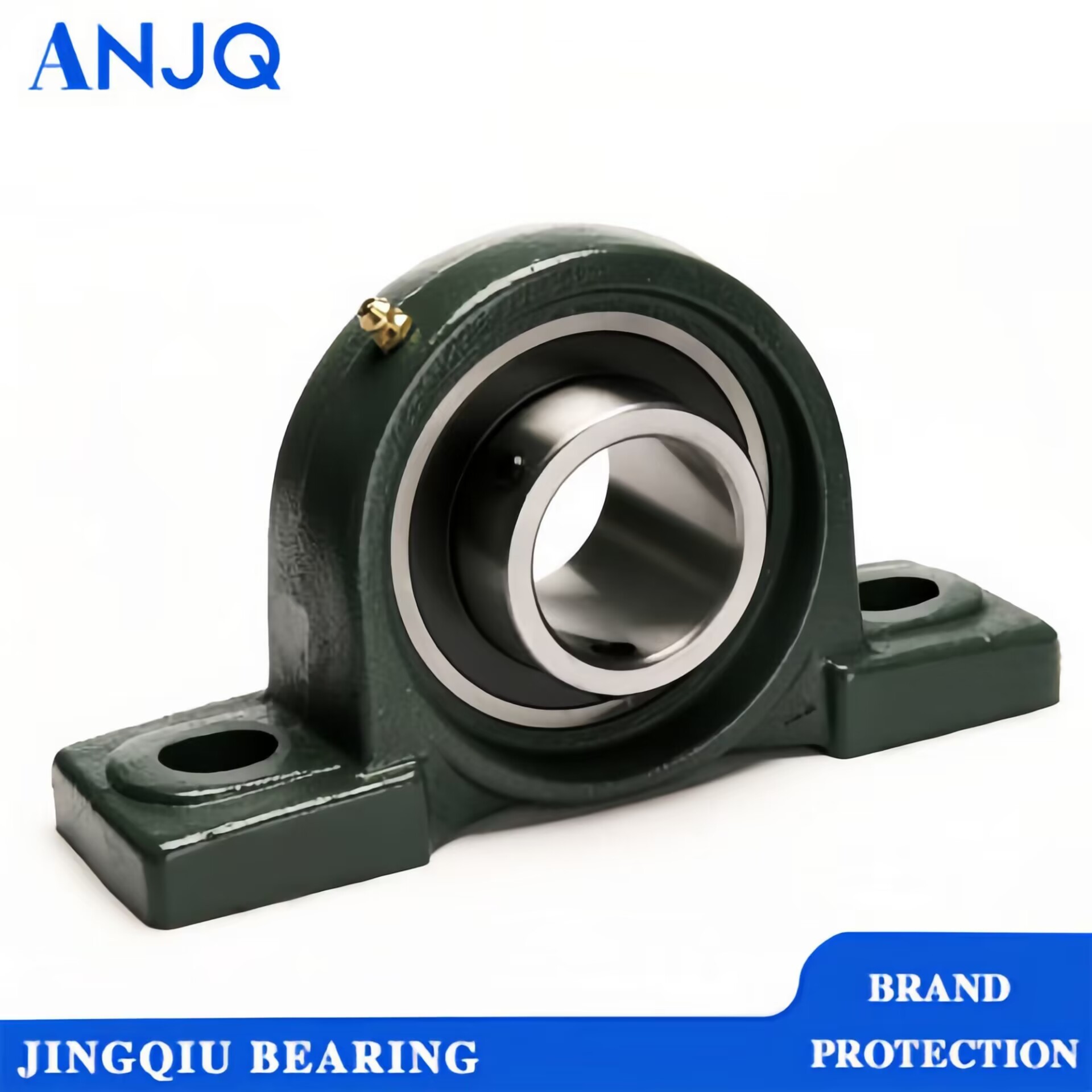

UCP210 with bearing seat bearing unit. UKP210 bearing unit with bearing seat

UCP210 with bearing seat bearing unit. UKP210 bearing unit with bearing seat

Product Description:
Pillow block bearings, also known as housed bearings or plummer blocks, are essential components in various machinery setups, providing support for rotating shafts and reducing friction. They are indispensable in many industrial applications due to their robust design and versatility. This article delves into the types of pillow block bearings, the materials used in their production, and the typical scenarios where they are utilized.
### Types of Bearing Housings
1. **Split Plummer Blocks**: These are designed for easy installation and maintenance, especially in cases where the shaft assembly cannot be removed. The split design allows for quick access to the bearing unit without significant disassembly.
2. **Non-Split Plummer Blocks**: Used predominantly in applications where the shaft is accessible from its end. These housings are often stronger than split types as they consist of a single unit.
3. **Flange Mounted Bearings**: These are used where the surface is perpendicular to the shaft's axis. They are available in two-bolt or four-bolt configurations and are suitable for conveyors and agricultural applications.
4. **Take-Up Units**: These are designed for conveyor belts and other applications where adjustment over time is necessary to maintain tension or relieve stress on the bearings.

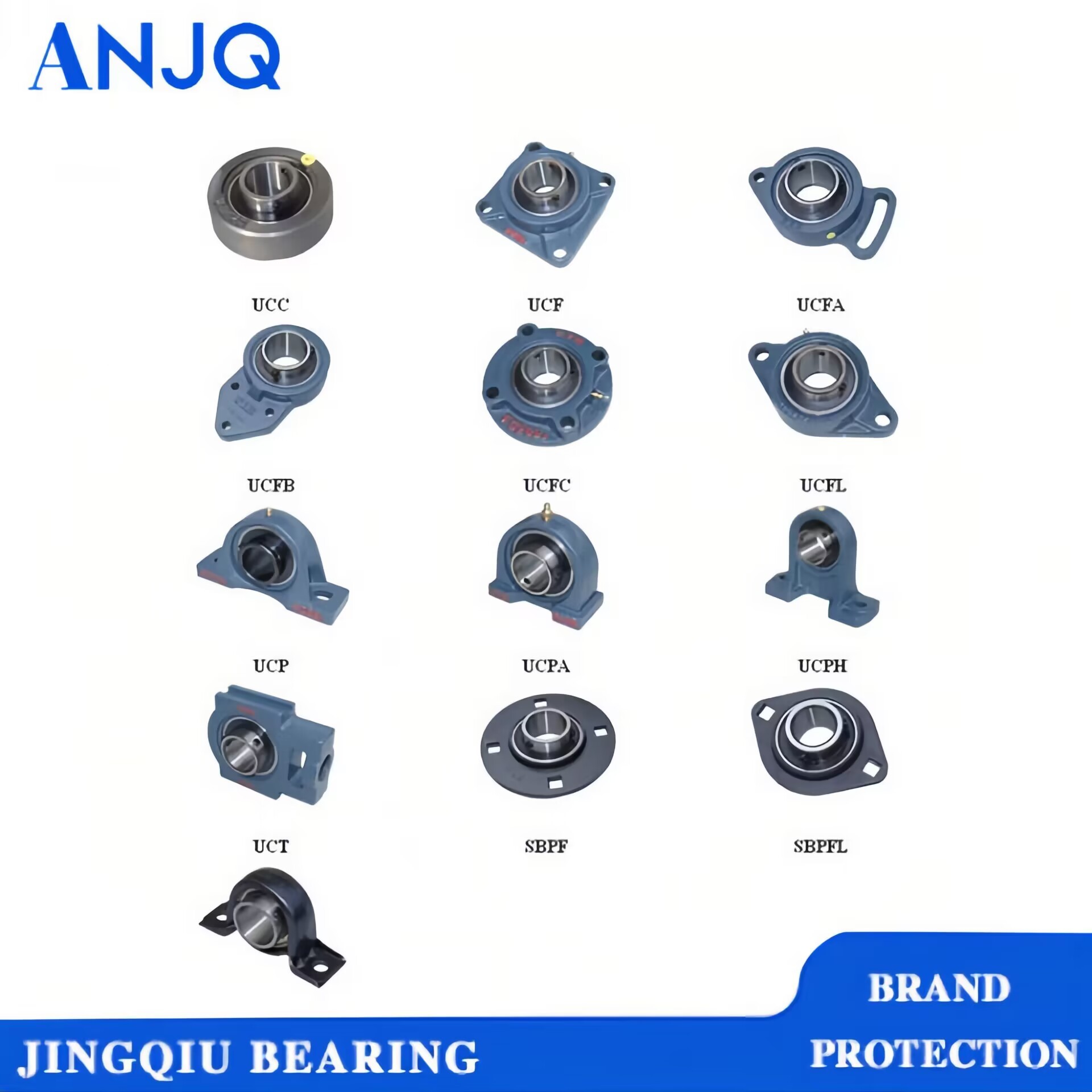

ANJQ. bearing the main types are:
External spherical ball bearing with vertical seat
Spherical bearing with square seat
Spherical ball bearing with diamond seat
Spherical ball bearing with boss and round seat
Outer spherical ball bearing with ring seat
Spherical ball bearing with sliding block seat
External spherical ball bearing with suspension seat
Spherical ball bearing with adjustable diamond seat
Outer spherical ball bearing with stamping seat
Spherical ball bearings with other seats
### Materials Used in Bearing Housings
1. **Cast Iron**: The most common material due to its excellent balance of strength and cost. It is suitable for most general-purpose applications.
2. **Steel**: Offers superior strength and durability, making it suitable for heavy-duty applications where robustness is paramount.
3. **Stainless Steel**: Used in environments that require resistance to corrosion and rust, such as food processing or chemical industries.
4. **Thermoplastic**: Ideal for applications where moisture exposure is frequent as they do not corrode and are typically used in the food and beverage industry.
5. **Ductile Iron**: Combines some attributes of cast iron and steel, providing better strength and impact resistance than standard cast iron.
### Applications of Pillow Block Bearings
Pillow block bearings are ubiquitous across numerous industries due to their simplicity of use and efficiency. Some of their key applications include:
- **Conveyors** in manufacturing plants rely heavily on pillow block bearings for smooth operation and load distribution.
- **Agricultural machinery**, such as combines and plows, use them for the durable support they provide in rugged conditions.
- **Food processing equipment** utilizes stainless steel or thermoplastic housings to ensure hygiene and resistance to frequent washing.
- **Textile machinery**, where reliable rotation and support are critical for smooth operation, also benefits from the robustness of these bearings.
- **Mining and construction machinery** use large, heavy-duty pillow block bearings to handle significant loads and harsh environments.
In conclusion, pillow block bearings are vital components in providing effective support and reducing friction in various industrial applications. Understanding the types, materials, and scenarios in which they are best used can greatly aid in selecting the right bearing for the job, ensuring efficiency and longevity in machinery performance.
