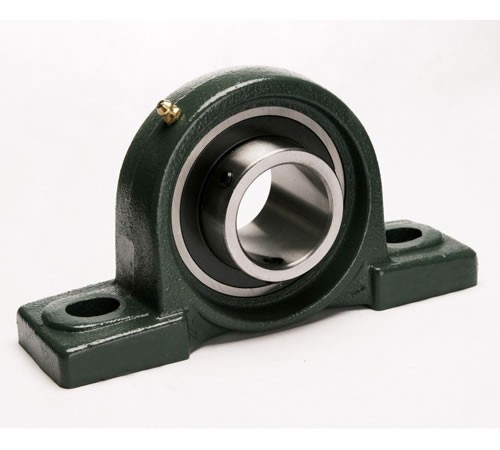

Bearing unit with seat

Material：52100 Bearing Quality Steel（GCr15SiMn）
Hardness：HRC 58-62

Clearance：C0 C3 C4

Precision rate：P0 P6 P5

Vibration：ZV1 ZV2 ZV3

Cage：Steel/Brass cage

Brand：ANJQ / OEM

Packing method：Cartons, wooden cases, or customer requirements

Service：OEM service provided

Product Description:

Bearing No	Shaft Dia		Dimensions(mm)									Basic dynamie Load ratings (KN)	Basic static Load ratings (KN)	Weight (kg)
	d		D	Bi	Be	n	m	G	ds		F
	(in)	(mm)							(mm)	(in.UNF)
UCW201 UCW201-8	1/2	12	40	27.4	14	11.5	15.9	4.2	M5x0.8	1/4-28	4.1	7.36	4.48	0.12
UCW202 UCW202-9 UCW202-10	9/16 5/8	15	40	27.4	14	11.5	15.9	4.2	M5x0.8	1/4-28 14-28	4.1	7.36	4.48	0.11
UCW203 UCW203-11	11/16	17	40	27.4	14	11.5	15.9	4.2	M5x0.8	1/4-28	4.1	7.36	4.48	0.10
UC201 UC201-8	1/2	12	47	31	17	12.7	18.3	5	M6x1	1/4-28	4.3	9.88	6.20	0.21
UC202 UC202-9 UC202-10	9/16 5/8	15	47	31	17	12.7	18.3	5	M6x1	1/4-28 1/4-28	4.3	9.88	6.20	0.19

UC203 UC203-11	11/16	17	47	31	17	12.7	18.3	5	M6x1	1/4-28	4.3	9.88	6.20	0.18 0.19
UC204 204-12	3/4	20	47	31	17	12.7	18.3	5	M6x1	1-4/28	4.3	9.88	6.20	0.17 0.18

UC205 205-14 205-15 205-16	7/8 15/16 1	25	52	34.1	17	14.3	19.8	5.4	M6x1	1/4-28	4	10.78	6.98	0.19 0.22 0.20 0.19

UC206 206-17 206-18 206-19 206-20	1-1/16 1-1/8 1-3/16 1-1/4	30	62	38.1	19	15.9	22.2	5.5	M6x1	1/4-28	5.3	14.97	10.04	0.31 0.33 0.34 0.32 0.30

UC207 207-20 207-21 207-22 207-23	1-1/4 1-5/16 1-3/8 1-7/16	35	72	42.9	20	17.5	25.4	6.9	M8x1	5/16-24	5.8	19.75	13.67	0.46 0.52 0.51 0.48 0.46

UC208 208-24 208-25	1-12 1-9/16	40	80	49.2	21	19.0	30.2	8	M8x1	5/16-24	6.2	22.71	15.94	0.63 0.68 0.64
UC209 209-26 209-27 209-28	1-5/8 1-11/16 1-3/4	45	85	49.2	22	19.0	30.2	8	M8x1	5/16-24	6.5	24.36	17.71	0.68 0.78 0.74 0.70
UC210 210-30 210-31 210-32	1-718 1-15/16 2	50	90	51.6	24	19.0	32.6	10	M10x1.25	3/8-24	7	26.98	19.84	0.78 0.85 0.80 0.78

UC211 211-32 211-34 211-35	2 2-1/8 2-3/16	55	100	55.6	25	22.2	33.4	10	M10x1.25	3/8-24	7.4	33.37	25.11	1.07 1.22 1.10 1.05


UC212 212-36 212-38 212-39	2-1/4 2-3/8 2-7/16	60	110	65.1	27	25.4	39.7	10	M10x1.25	3/8-24	7.6	36.74	27.97	1.51 1.65 1.52 1.42


UC213 213-39 213-40	2-7/16 2-1/2	65	120	65.1	28	25.4	39.7	10	M10x1.25	3/8-24	8.5	44.01	34.18	1.86 1.96 1.94

UC214 214-43 214-44	2-11/16 2-314	70	125	74.6	29	30.2	44.4	12	M12×1.25	7/16-20	8.9	46.79	37.59	2.18 2.28 2.06

UC215 215-47 215-46	2-15/16 3	75	130	77.8	30	33.3	44.5	12	M12x1.25	7/16-20	9.2	50.85	41.26	2.21 2.30 2.13

UC216		80	140	82.6	33	33.3	49.3	12	M12x×1.25	7/16-20	9.5	55.04	45.09	2.79
UC217 217-52	3-1/4	85	150	85.7	35	34.1	51.6	12	M12x1.25	7/16-20	11.1	64.01	53.28	3.38 3.59

UC218 218-56	3-12	90	160	96	37	39.7	56.3	12	M12x1.25	1/2-20	11.8	73.83	60.76	4.46 4.56
