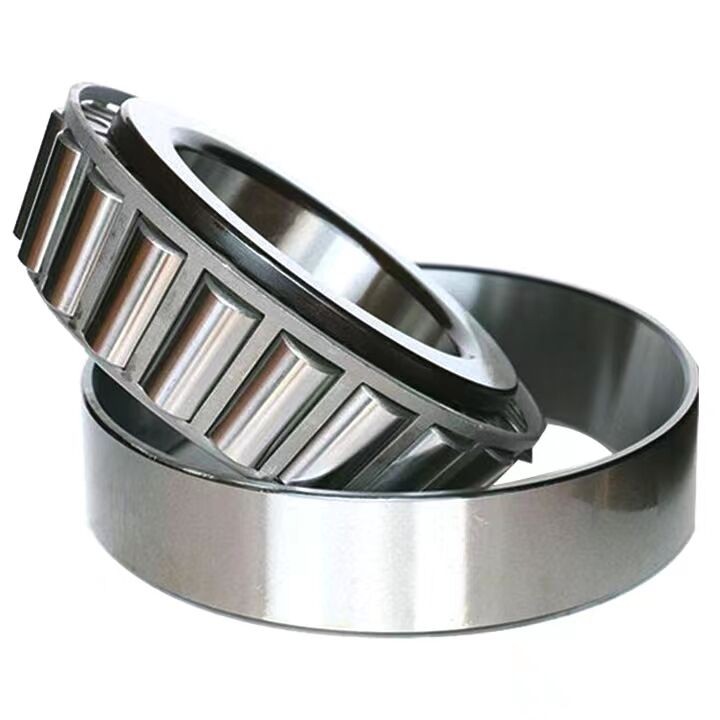

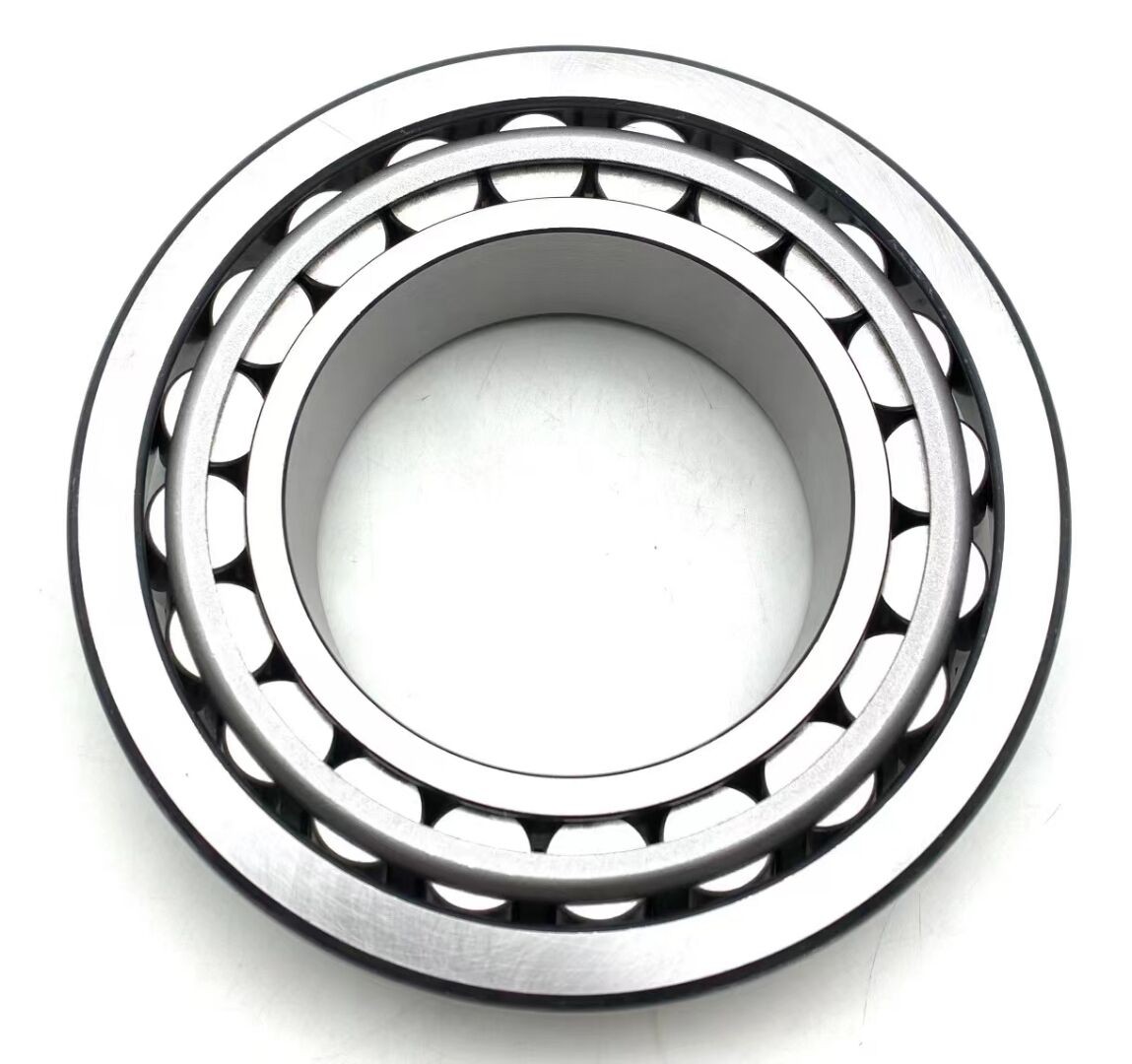

**Overview and dimensional details of imperial tapered roller bearings 15101/245**
**Overview**
English tapered roller bearing 15101/245 is a common type of rolling bearing in mechanical equipment. Its design allows bearings to withstand a combination of radial and axial loads, making it highly suitable for applications such as automotive hubs, industrial machinery, and agricultural equipment that require high loads and speeds. This type of bearing usually consists of an inner ring, an outer ring, a rolling element (tapered roller), and a cage (cage), all of which are tightly matched to ensure excellent performance and long service life of the bearing under different working conditions.
**Size details**
For imperial bearings 15101/245, the precise dimensional parameters of each part are crucial in practical applications, and these details are as follows:
1. * * Inner diameter (D) * *: The inner diameter of the inner ring, usually measured in inches or millimeters. For 15101/245, the inner diameter is * * 1.000 inches * * (25.4mm).
2. Outer diameter (D1): The outer diameter of the outer ring, also marked in inches or millimeters. The outer diameter of the bearing is 2.441 inches (62.019mm).
3. * * Width (B) * *: The total width of this bearing, including the width of the inner and outer rings. For 15101/245, the width is * * 0.748 inches * * (19mm). Among them, the inner ring width is * * 0.430 inches * * (10.922mm), and the outer ring width is * * 0.580 inches * * (14.732mm).
4. * * Roller diameter * *: The diameter of the tapered roller. Although small, the size and quantity of rollers directly affect the bearing's load capacity and service life.
5. * * Raceway diameter * *: The diameter of the raceway on the inner and outer rings, which determines the final running trajectory and contact angle of the roller, thereby affecting the performance of the bearing.
These precise dimensions and standards ensure that the 15101/245 bearings maintain efficient and stable working conditions in complex machinery, and highlight their reliability and durability under harsh conditions.
**Application and Maintenance**
When using 15101/245 tapered roller bearings, special attention should be paid to the following aspects:
1. * * Correct Installation * *: Improper installation can cause early damage to the bearings, so it is necessary to ensure the precise fit of the bearings with the shaft and seat holes, as well as the correct pressing method during installation.
2. * * Lubrication * *: Maintaining good lubrication is the key to extending bearing life. Regularly inspect and add suitable lubricants to reduce friction and wear of bearings during high-speed operation.
3. * * Testing and Replacement * *: Regularly monitor the operating status, abnormal sounds, and vibration of the bearings in order to promptly detect problems and replace them.
In summary, British tapered roller bearings 15101/245 are widely used in various mechanical equipment due to their superior design and standardized dimensions, demonstrating excellent performance and reliable durability. Under the premise of correct installation, sufficient lubrication, and regular inspection, the operational efficiency and service life of the equipment can be effectively improved.
