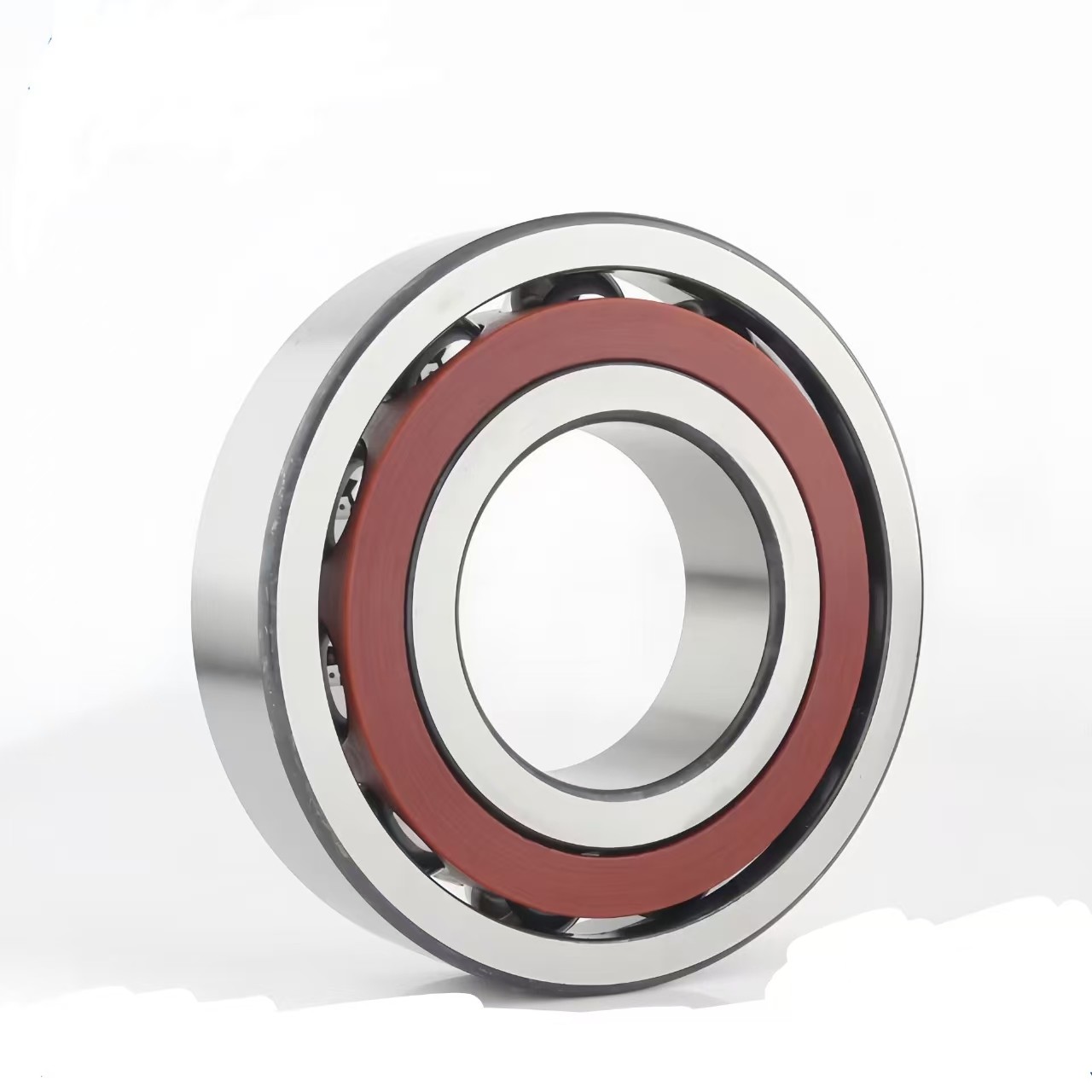

AngularGroove Ball Bearing

Material：52100 Bearing Quality Steel（GCr15SiMn）
Hardness：HRC 58-62
Clearance：C0 C3 C4
Precision rate：P0 P6 P5
Vibration：ZV1. ZV2 .ZV3.
Type：2RS .ZZ .N .
Cage：Steel/Brass cage
Brand：ANJQ / OEM
Packing method：Cartons, wooden cases, or customer requirements
Service：OEM service provided

Product Description:

Beaning type	Boundary Dimensions(mm)					Load Rating (kn)		Speed Rating(ipm)		Weight (kg)
(AC/ACM)	d	D	B	s min	1s min	Dynam ic Cr	Static Cor	Grease lubrication	Oil lubrication
7000	10	26	8	0.3	0.15	4.65	2.07	29,000	39,000	0.023
7001	12	28	8	0.3	0.15	5.05	2.46	26,000	35,000	0.025
7002	15	32	9	0.3	0.15	5.8	3.15	23,000	31,000	0.035
7003	17	35	10	0.3	0.15	7.15	3.85	21,000	28,000	0.046
7004	20	42	12	0.6	0.3	9.7	5.6	19,000	25,000	0.08
7005	25	47	12	0.6	0.3	10.7	6.85	16,000	21,000	0.093
7006	30	55	13	1	0.6	13.9	9.45	13,000	18,000	0.135
7007	35	62	14	1	0.6	17.5	12.6	12,000	16,000	0.18
7008	40	68	15	1	0.6	18.8	14.6	10,000	14,000	0.222
7009	45	75	16	1	0.6	22.3	17.7	9,500	13,000	0.282
7010	50	80	16	1	0.6	23.7	20.1	8,600	11,000	0.306
7011	55	90	18	1.1	0.6	31	26.3	7,900	11,000	0.447
7012	60	95	18	1.1	0.6	32	28.1	7,200	9,600	0.478
7013	65	100	18	1.1	0.6	33.5	31.5	6,700	9,000	0.509
7014	70	110	20	1.1	0.6	42.5	39.5	6,200	8,300	0.705
7015	75	115	20	1.1	0.6	43.5	41.5	5,800	7,800	0.745
7016	80	125	22	1.1	0.6	53.5	50.5	5,500	7,300	0.994
7017	85	130	22	1.1	0.6	54.5	53.5	5,100	6,900	1.04
7018	90	140	24	1.5	1	65	63.5	4.900	6,500	1.35
7019	95	145	24	1.5	1	67	67	4,600	6,100	1.41
7020	100	150	24	1.5	1	68.5	70.5	4,400	5,800	1.47
7021	105	160	26	2	1	80	81.5	4,100	5,500	1.86
7022	110	170	28	2	1	92	93	3,900	5,300	2.3

7200	10	30	9	0.6	0.3	5	2.52	24,000	32.000	0.029
7201	12	32	10	0.6	0.3	7	3.65	21,000	28,000	0.036
7202	15	35	11	0.6	0.3	8.35	4.35	18,000	25,000	0.046
7203	17	40	12	0.6	0.3	11	6.1	17,000	22,000	0.066
7204	20	47	14	1	0.6	13.3	7.7	15,000	20,000	0.102
7205	25	52	15	1	0.6	14.8	9.4	12,000	16,000	0.129
7206	30	62	16	1	0.6	20.5	13.5	11,000	14,000	0.197
7207	35	72	17	1.1	0.6	27.1	18.4	9,300	12,000	0.287
7208	40	80	18	1.1	0.6	32	23	8,300	11,000	0.375
7209	45	85	19	1.1	0.6	36	26.2	7,400	9,900	0.41
7210	50	90	20	1.1	0.6	37.5	28.6	6,700	9,000	0.466
7211	55	100	21	1.5	1	46.5	36	6.100	8,200	0.612
7212	60	110	22	1.5	1	56	44.5	5,700	7,600	0.78
7213	65	120	23	1.5	1	63.5	52.5	5,200	7,000	0.981
7214	70	125	24	1.5	1	69	58	4,900	6,500	1.11
7215	75	130	25	1.5	1	71.5	62	4,500	6,000	1.19
7216	80	140	26	2	1	80.5	69.5	4,300	5,700	1.42
7217	85	150	28	2	1	90	80.5	4,000	5,300	1.82
7218	90	160	30	2	1	107	94	3,800	5,000	2.22
7219	95	170	32	2.1	1.1	121	107	3,500	4,700	2.72
7220	100	180	34	2.1	1.1	130	114	3,400	4,500	3.26
