Product Description:

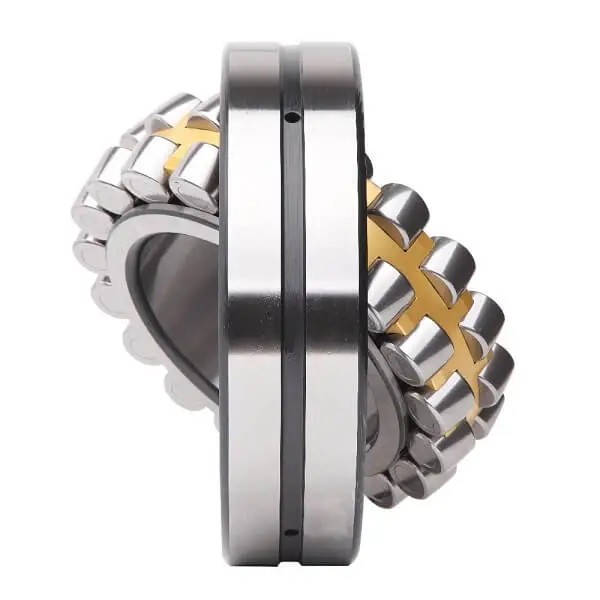

##Introduction to Self aligning Roller Bearing 22209
The bearing size is 45mm inner diameter, 85mm outer diameter, and 23mm thickness
Self aligning roller bearing 22209 is a very important mechanical component widely used in various mechanical equipment. It can withstand large radial loads and certain axial loads, playing a crucial supporting and transmission role in mechanical transmission systems. Below, we will provide a detailed introduction to the characteristics, structure, application, installation and maintenance methods of the self-aligning roller bearing 22209
###1、 The characteristics of self-aligning roller bearing 22209
1. * * Good centering performance * *: The outer raceway of the self-aligning roller bearing is spherical and can be aligned with the inner raceway. Even if there is tilting or non concentricity between the shaft and the bearing seat, the bearing can still work normally. This is why it is called "self-aligning roller bearing".
2. * * High load-bearing capacity * *: The rollers of self-aligning roller bearing 22209 are cylindrical in shape and have linear contact with the raceway, which can withstand large radial and axial loads. Meanwhile, due to the short length of its rollers, it can effectively reduce the friction between the rollers and the raceway, thereby improving the bearing capacity.
3. * * Strong Durability * *: This type of bearing is made of high-quality steel and undergoes special quenching treatment, which has high hardness and wear resistance. Can maintain stable performance and long service life under high temperature and high-speed operation.
###2、 Structure of self-aligning roller bearing 22209
The self-aligning roller bearing 22209 consists of four parts: inner ring, outer ring, rolling element, and retainer:
1. Inner and outer rings: The inner and outer rings have raceways respectively, with the inner ring installed on the shaft and the outer ring installed in the bearing seat. In the case where the raceway of the outer ring is spherical, the raceway of the inner ring is parallel.
2. * * Rolling element * *: Rolling element is usually a symmetrical double row tapered roller or spherical roller, which can effectively share the load. The line contact between the rollers and the inner and outer raceways ensures high load-bearing capacity.
3. * * Cage * *: Cage is used to separate and guide rolling elements, usually made of steel plate, brass or synthetic resin. Cage not only prevents rolling elements from falling off, but also reduces friction between rolling elements.
###3、 Application field
The self-aligning roller bearing 22209 is widely used in various mechanical equipment, especially suitable for the following fields:
-Mining machinery, such as crushers, vibrating screens, and other equipment, require the use of bearings with good centering performance due to their ability to withstand large impact loads during operation.
-Heavy machinery: In equipment such as steel mills, paper mills, etc., due to their harsh working conditions, bearings with high load-bearing capacity and strong durability are required.
-Agricultural machinery: For equipment such as tractors, combine harvesters, etc., self-aligning roller bearings can cope with poor working conditions and ensure the normal operation of the equipment.
###4、 Installation and Maintenance
1. * * Installation precautions * *:
-Before installation, the bearings should be cleaned to ensure that no foreign objects enter.
-During the installation process, pressure should be evenly applied to avoid directly striking the bearings with a hammer, in order to avoid damage to the bearings.
-After installation, it is necessary to check the position and clearance of the bearings to ensure they are within the allowable range.
2. * * Maintenance and upkeep * *:
-Regularly check the working condition of the bearings, paying attention to any abnormal sounds, vibrations, or high temperature rise.
-Ensure good lubrication, regularly replace lubricating grease or oil to avoid bearing damage caused by dry friction.
-When working in harsh environments, sealed bearings or protective devices should be added to the bearings to prevent dust and impurities from entering.
###Summary
The self-aligning roller bearing 22209 plays an important role in mechanical equipment, with good self-aligning performance and high load-bearing capacity, and is widely used in mining machinery, heavy machinery, and agricultural machinery. By proper installation and meticulous maintenance, its service life can be extended, and the efficiency and reliability of the equipment can be improved.
